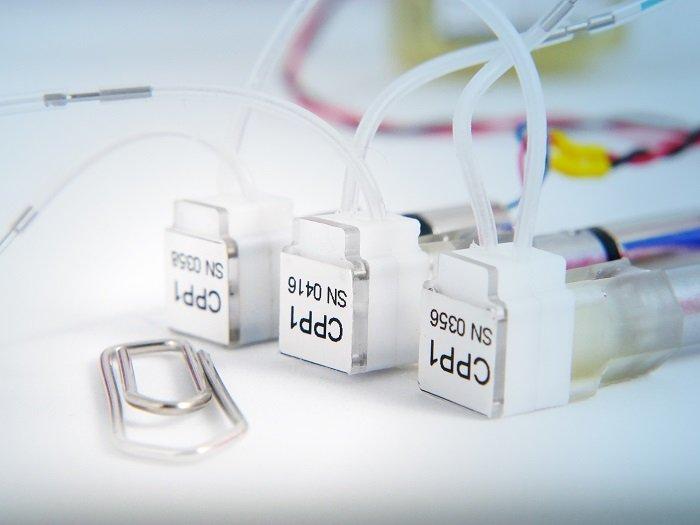

NEW! Peristaltic micropumps

Innovative Sensor Technology IST AG’s latest development is the peristaltic pump series CPP1. Designed for liquids and gases, the pumps provide small flow rates in combination with reliable flow rate control and biocompatibility.

The CPP1 peristaltic micropumps enable the bidirectional pumping of small amounts of liquids and gases in a controlled stream. The possible flow rates range from 150 nl to 800 µl. They are therefore, among others, optimal for supplying analytes to sensors.

With peristaltic pumps only the tubing is in contact with the medium, preventing contamination of the pumped liquids or gases. The media passes the pump through a medical-grade silicone tube.

The CPP1 pumps are designed to be connected to existing fluidic systems, e.g. directly to tubes and pipes. This is a big advantage over other pump types like syringe pumps, which is why peristaltic pumps are widely used in biotechnical applications. Another benefit is that a CPP1 peristaltic pump acts as a valve in the fluidics system even when it is not rotating. This way, the CPP1 can withstand a pressure difference of up to 2 bar, ensuring that the media at the pump’s in/outlet remain separated. For example, when pumping into a waste reservoir, no waste material can diffuse through the pump.

The small pumps come with a form factor of only 9.5 × 11.2 × 31.4 mm and have a typical current consumption of 30 mA at 3 V. This is optimal for the integration into microfluidic analyzer systems as well as single pump desktop and handheld devices with miniaturization requirements.

Key features and advantages of the IST AG peristaltic pump series:

  • Pump rates ranging from 150 nl – 800 µl (depending on pump type), bidirectional
  • Only medical grade, leak free silicone tubing in contact with the media
  • Stable and reproducible pumping of various fluids and gases
  • Miniaturized form factor enabling the integration into arrays and microfluidic devices
  • More than 1000 operating hours at 50 µl/min (depending on pump type)
  • Separation of the two media ports up to 2 bar pressure difference

“With this long-term development of this completely new product line, we are not only able to meet the high demand for miniaturized pumps, but also to supplement our IV4 and LV5 biosensors, which measure glucose, glutamine, glutamate and lactate,” states Dr. Mirko Lehmann, CEO of Innovative Sensor Technology IST AG, and adds: ”IST AG offers an evaluation kit for the peristaltic pump series. This kit is an electric circuit board connected and powered by the USB port of any PC. It allows to control up to 4 pumps at a time.”

Small quantities of the pumps and evaluation kits are available for companies on our online shop. For larger requirements and customization options contact our sales team at info@ist-ag.com.

Über die Innovative Sensor Technology IST AG

Innovative Sensor Technology IST AG is one of the global leaders in micro system technology, services and solutions for industrial measurement applications. The company employs approx. 400 personnel across the globe.

IST AG is a manufacturer and partner for physical, chemical and biological sensors. Its product range contains thin-film platinum and nickel RTD temperature sensors, capacitive humidity sensors, thermal mass flow sensors, conductivity and biosensors. IST AG also manufactures a broad portfolio of calibrated humidity modules. Additionally, a highly qualified technical team offers consulting, development and production of challenging customer requests in the field of micro system technology.

The wide product range is the choice of many renowned end customers and OEMs in their fields. As a result, IST AG sensors are found in measuring instruments for various applications, such as HVAC, automation, appliance, medical, test and measurement, aerospace, bio measurement and process control and many more.

Founded in 1991, Innovative Sensor Technology is headquartered in Ebnat-Kappel, Switzerland in the mountain region of Toggenburg. In 2005, Innovative Sensor Technology became part of the Endress+Hauser Group, headquartered in Reinach, Switzerland. The Endress+Hauser Group is among the global leaders in measuring instruments, services and solutions for industrial process engineering.

For further information, please visit www.ist-ag.com
