High-Throughput Metrology for Photonic Test & Packaging Automation: High-Resolution Photometer

.
PI (Physik Instrumente) offers a new, compact power meter, available in two variants, optimized for applications in the alignment and assembly of photonic structures.

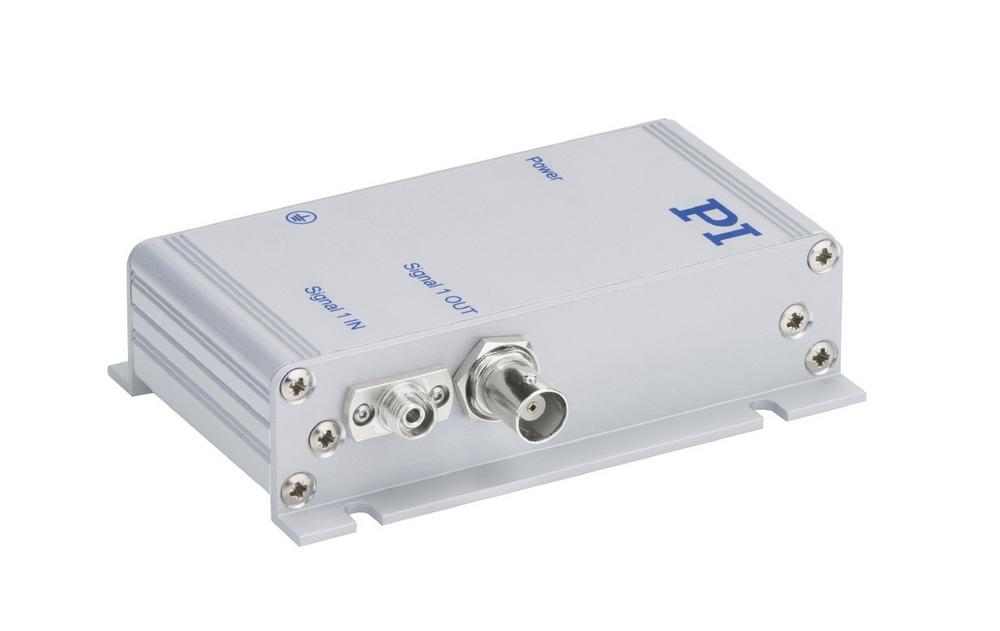

With the new F-712.IRPx optical power meter, PI supplements its portfolio with a low-cost alternative to the proven F-712.PM1 high-end power meter. The new F-712.IRPx photometer (optical power meter) detects optical input signals, without range switching, in the wavelength range of 600 nm to 1700 nm with a power between 230 pW and 1.3 mW. The signals are converted with high resolution into a precision, logarithmic voltage signal (0.1 V to 1.6 V). The bandwidth equals 6 kHz, fully enabling the high-throughput alignment and scanning capabilities of PI’s award-winning Fast Multichannel Photonic Alignment (FMPA) motion subsystems, solution platforms, and micro-robots.

The main field of application is the alignment optimization of glass fibres/fibre arrays and other elements to photonically integrated circuits (PICs). The signal strength changes depending on the geometrical position of the elements to be coupled. This change is detected by the power meter and is used as control variable for position optimization. The logarithmic scaling of the output signal is particularly advantageous for fast scans – as, for example, when searching for the first light – because the signal strength can fluctuate by several orders of magnitude within a few milliseconds. The optical power meter is used to find the maximum optical intensity quickly when integrated in fully automatic, optical FMPA alignment systems. The new photometer can also be used in many other applications where the signal to be optimized can be represented as voltage and responsiveness is paramount.

Two variants are available:

For particularly compact assemblies and seamless integration into the FMPA systems from PI, the power meter is designed as a two-channel plug-in module for the E-712 controller.

For independent operation, the power meter is available as a single-channel benchtop or panel-mounted device, whose low power requirements can be covered by a standard USB power adapter for easy OEM integration.

For more information about the F-712.IRPx series, refer to: https://www.physikinstrumente.com/en/products/fast-multi-channel-photonics-alignment-systems/f-712irp-high-resolution-photometer-412418504/?mplist=5-10_5-1590_5-890_5-891_5-2392_5-2274_5-2275_5-6698

Über die Physik Instrumente (PI) GmbH & Co. KG

PI (Physik Instrumente), headquartered in Karlsruhe, is the market and technology leader for high-precision positioning technology and piezo applications in the semiconductor industry, life sciences, photonics, and in industrial automation. In close cooperation with customers from all over the world and for 50 years now, PI’s specialists (approx. 1,300) have been pushing, again and again, the boundaries of what is technically possible and developing customized solutions from scratch. More than 350 granted and pending patents underline the company’s claim to its leadership. PI has six production sites and 15 sales and service offices in Europe, North America, and Asia.
