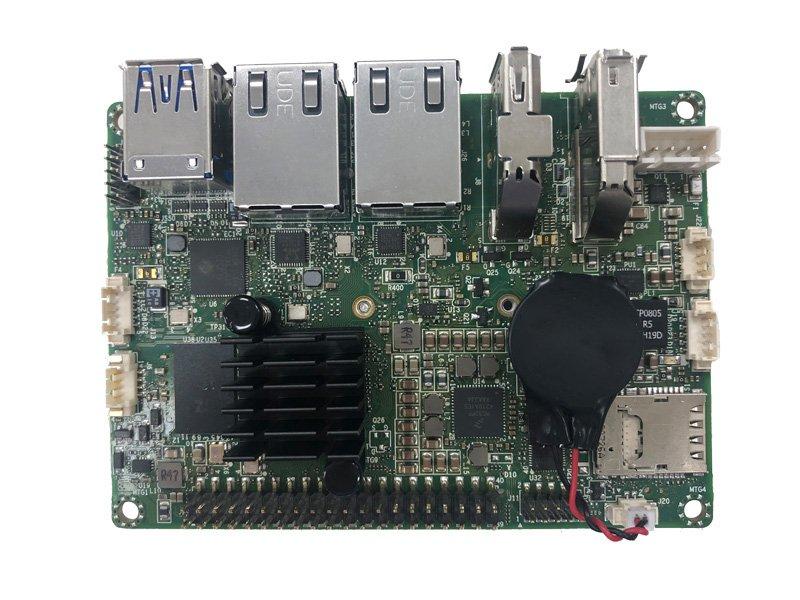

The Internet of Things is booming! Smart devices, smart buildings or transportation, cities and much more influence our daily life. The basis of the Internet of Things is still a computer, like Mitac’s ND108T. A small, multifunctional and cost-efficient board, suitable for various types of embedded applications, with low power consumption and designed for use in industrial environments. Powered by the latest NXP I.MX8M dual/quad core A53 processor, the ND108T offers up to four 1.5 GHz ARM Cortex-A53 plus Cortex-M4 cores. In addition to high processing power and low power consumption, the ND108T offers flexible memory options and a variety of interfaces. The processors also offer full 4K UltraHD resolution and HDR video quality, as well as top-level professional audio output. To realize industrial or embedded application, such as machine vision, automatic optical inspection, or robotic automation conveyor, more functions and expansion I/O are required to allow all devices to communicate with each other. Among other things, the 40-pin GPIO header compatible with the Raspberry* provides the necessary flexibility for expansion. This opens up the ND108T to the Raspberry* Pi’s extensive peripheral ecosystem, especially HATs. HATs (Hardware Attached on Top) are expansion boards that connect to the Raspberry Pi’s 40 GPIO pins and provide additional functionality. Examples of HATS include LCS/OLED/E-Ink displays, FANs, GPS/GSM/LoRA/RFID capabilities, additional I/O ports, cameras, and environmental sensors. All of these HATS increase the versatility of the ND108T, making it even more attractive for embedded applications. The ND108T is available in five different versions from ICP Germany.
ICP. Industrial Computer Products …by people who care!
Specifications
- 5GHz NXP I.MX8M Cortex A53 Quad-Core SoC
- Up to 4GB 64bit LPDDR4 1600MHz SDRAM
- Up to 32GB eMMC memory
- Micro SD card slot
- Optional Dual LAN
- Optional Dual Display
- Raspberry PI compatible 40 pin GPIO header
Applications
- Applications
- IoT Device
- HMI device
- Display unit
