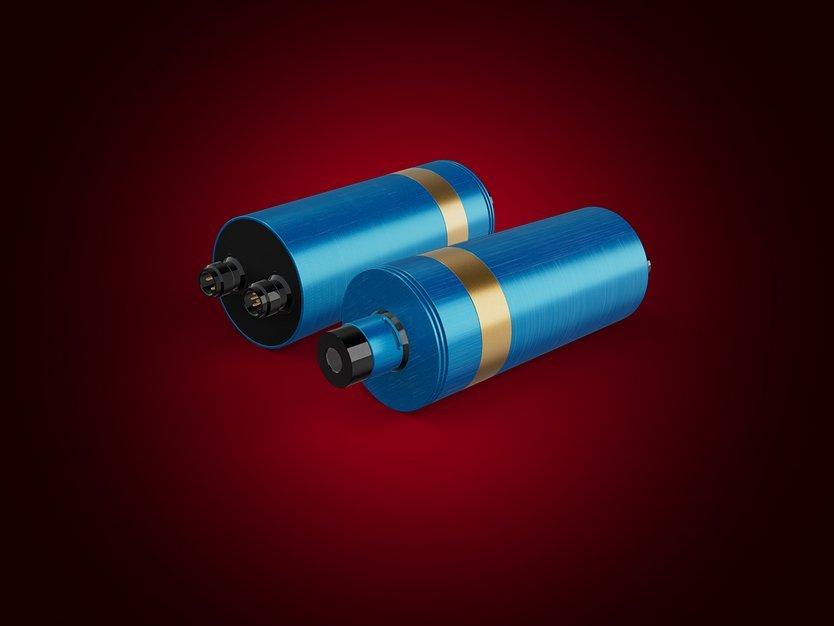

FLEXPOINT® MVgoldHP – High light intensity with thermoelectric cooling

The new FLEXPOINT^® MVgoldHP laser module from LASER COMPONENTS combines high light intensity up to 2000 mW with an integrated thermoelectric cooler and pulsing function. This combination avoids overheating and provides stable, long-standing scanning processes. Digital modulation (active high or active low) is applied to tune the new laser module precisely to the takt time of the camera shutter.

The line optics of the new FLEXPOINT^® MVgoldHP module is produced in-house. It delivers a sharp, uniform laser line whose high output power is ideal for difficult measuring tasks, e.g. when inspecting steel or other hot materials. It comes at five wavelengths and provides up to 1 W for 525 nm, 638 nm, 660 nm, and 808 nm as well as up to 2 W for 445 nm.

The compact housing measures 48 mm in diameter and 146 mm in length and is available with different focus options to perfectly fit line thickness and depth of focus for each MV application.

The new FLEXPOINT^® MVgoldHP will be available from July 2025. LASER COMPONENTS will display the product for the first time at LASER Word of PHOTONICS 2025, Hall B2/319.
