Flexible and Lightweight, With an Impressive Range

While large systems such as the ImageIR® 8300 Z and ImageIR® 9300 Z are primarily used in stationary applications due to their weight, the ImageIR® 6300 Z is particularly suitable for mobile use thanks to its extremely compact design.

Extraordinary High Range and Outstanding Image Quality: ImageIR® 8300 Z and 9300 Z
The ImageIR® 8300 Z and 9300 Z radiometric zoom cameras are equipped with a 30× optical zoom lens as standard, covering a focal length range from 28 to 850 mm. Developed as a lens system for demanding surveillance tasks, this lens enables the detection of people at distances of up to 17.7 km*, for example.

For applications requiring an even greater range, a teleextender is available for both cameras, extending the focal length to 1,350 mm. This impressive upgrade increases the detection range to an outstanding 23.2 km.

However, the extremely high focal length range means that the system is relatively heavy. This inevitably limits the system’s mobility, and robust tripods, pan-tilt heads, and other accessories are therefore required for use.

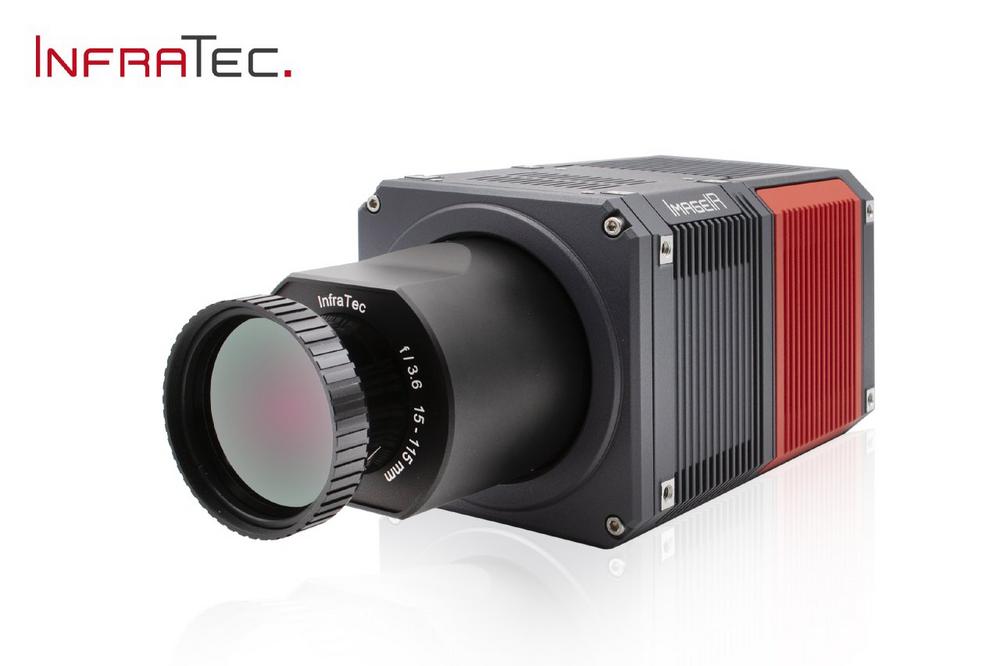

ImageIR® 6300 Z: Mobile Thanks to State-of-the-Art Technology
With the ImageIR® 6300 Z InfraTec has taken a new approach to the development of zoom cameras: thanks to a state-of-the-art SWaP-optimized detector and cooling technology, the system weight has been reduced to just 2 kg. The 15–115 mm motorized zoom lens used in the standard version, in combination with an MWIR detector, enables the detection of people at distances of over 6.1 km.

Equipped with a teleextender, the ImageIR® 6300 Z weighs only 2.5 kg, and its overall length increases from 225.5 mm to just 259 mm. With the focal length extended to 170 mm, it is possible to detect people at a distance of up to 8.2 km.

Another key benefit: the ImageIR® 6300 Z’s teleextender, which simply screws onto the front of the lens, can be mounted and removed by users themselves. This significantly expands the range of practical applications.

Regardless of whether it is used with or without a teleextender, the ImageIR® 6300 Z is a highly flexible camera system. It can be applied for a wide range of applications, including in the fields of:

• Surveillance and monitoring
• Aerial thermography
• Research and development
• Component analysis, even for small components
• Quality assurance in laboratory operations
• Automation
• System integration
