Quality made visible thanks to powerful 3DViewStation graphics

Speed and precision for the highest demands

In quality assurance, every second counts – and every deviation. Kisters 3DViewStation loads even large and complex assemblies in seconds and allows QA specialists to perform detailed checks directly on the digital model – without having to rely on original CAD systems. Support for over 60 formats such as CATIA, NX, SolidWorks, JT, STEP, and many more makes it a universal platform for all CAD data.

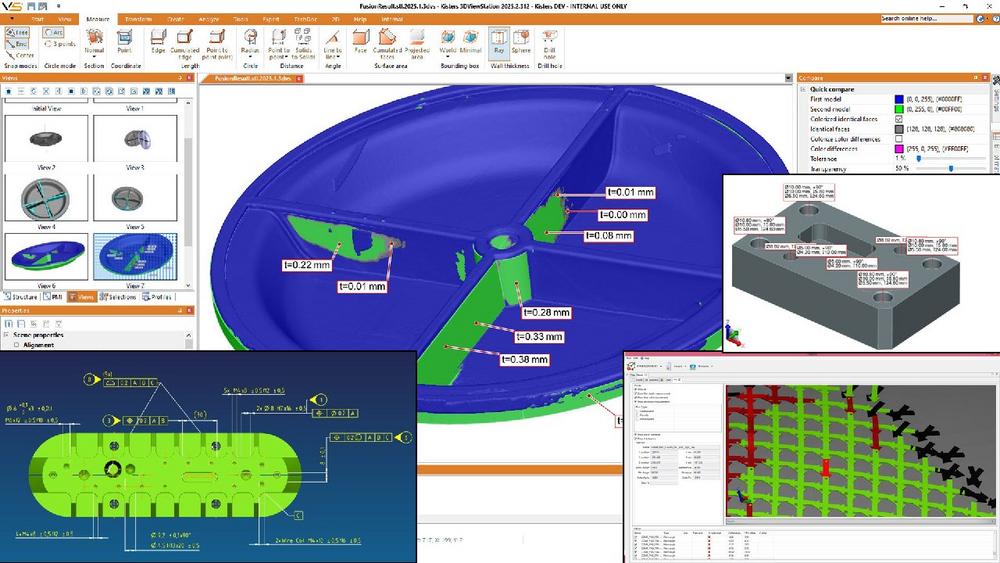

With precise measurement functions, section analyses, and wall thickness checks, the software provides important insights into component quality. At the same time, the powerful comparison function not only allows the analysis of different versions of a component, but also the comparison of the 3D CAD model with the 3D scan of the produced component – a key factor in change management and production. The “best fit” function minimizes the effort required to ideally position the CAD model and 3D scan in preparation for the comparison.

“In quality assurance, it is important to be able to assess complex geometries quickly and reliably – that’s exactly what 3DViewStation was developed for,” explains Craig Impastato, sales manager at KISTERS.

Digital inspection processes: From design review to initial sample inspection

Kisters 3DViewStation digitally supports the entire quality process:

• Design and change comparisons: Compare different CAD versions to ensure that changes have been implemented correctly.
• Tolerance inspection & dimensioning: Checking the geometry for dimensional accuracy, approving dimensions directly in the model. Identifying deviations by placing special symbols, attaching flags/balloons (3D annotations) or coloring, either interactively or automatically
• Collision detection: Detect potential collisions or installation space violations before manufacturing.
• Documentation & communication: Test reports can be easily created and communicated using 3D ballooning, 3D annotations, 3D markups, screenshots, or HTML integration.
• Automated inspection processes: Batch functions can be used to automate recurring inspections, for example in goods receiving or supplier evaluations.

Especially in regulated industries such as the automotive industry, aerospace, or medical technology, 3DViewStation supports compliant and traceable quality assurance.

Collaboration on a new level

The ability to view models in desktop, web, or VR versions allows teams across locations to collaborate efficiently. Quality assurance thus becomes a continuous, digitally supported process—with all participants in view.

A real-world example: An international supplier uses 3DViewStation in goods receiving to compare delivered CAD data with approved models – fully automated and without manually opening the models in the original system. This saves time, prevents errors, and improves supplier evaluation.

Future-proof and integrable

Kisters 3DViewStation can be fully integrated into existing engineering IT structures – whether PLM systems, PDM platforms, or QM databases. A powerful API enables customized use cases. At the same time, the software is future-proof: updates to new CAD formats, performance improvements, and continuous functional enhancements are standard features.

“3DViewStation brings precision and speed to quality assurance – a real added value in the age of digital twins and Industry 4.0,” says Impastato.

About 3DViewStation

KISTERS 3DViewStation is continuously enhanced in response to customer needs and requirements. It is available as a Desktop, HTML5 WebViewer and VR Edition product versions plus the online collaboration tool VisShare. All product offerings can be integrated with a PLM, ERP or other leading management system as well as service and spare part applications. KISTERS 3DViewStation provides all necessary APIs for your development team. For cloud, portal and web solutions, there is a HTML5-based WebViewer solution available, which does not require client installation. All file formats can be used in combination with the intelligent navigation and hyperlinking features to address the needs of complex integration scenarios.
